Hottest Item Radiolink 2.4ghz Rc4gs V3 Rc 5ch Transmitter Real Time Telemetry High Speed Long Range Rc Radio Remote Control Toys
Hottest Item Radiolink 2.4ghz Rc4gs V3 Rc 5ch Transmitter Real Time Telemetry High Speed Long Range Rc Radio Remote Control Toys
$29.33
🏪
船運
Standard Delivery
🚚
成本
$0.00
📦
Estimate
3 天
Factory Profile

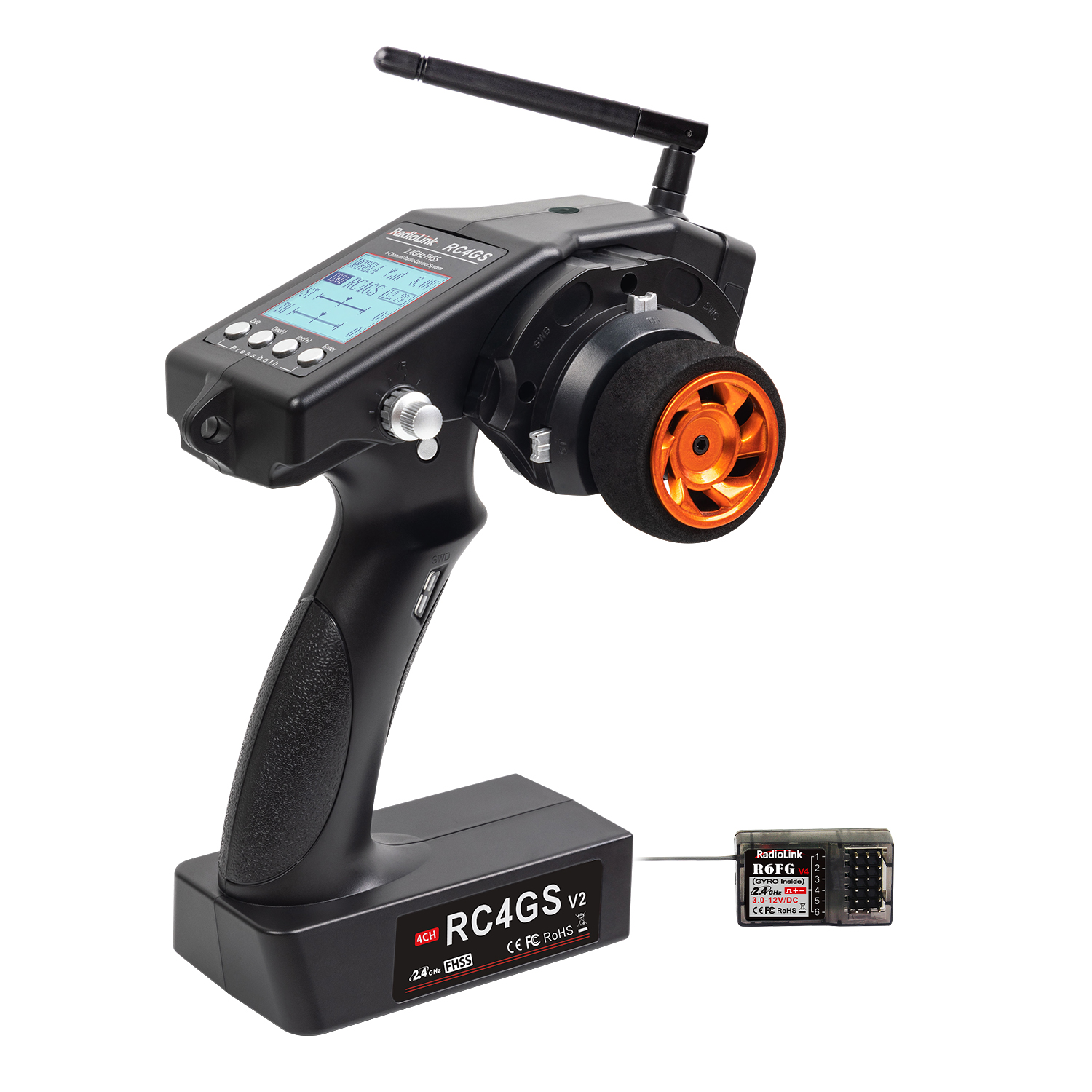

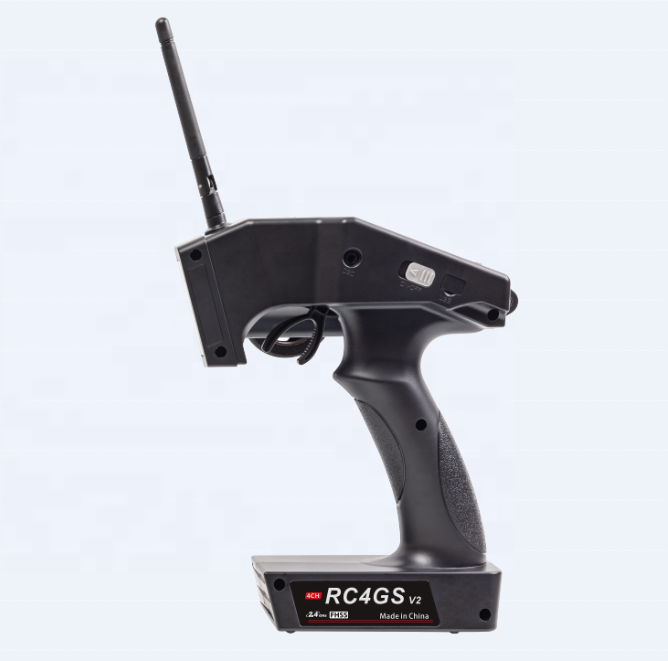

RC4GS V3 5 Channels Transmitter Specification
Dimensions | 174.8*116.4*224.2mm(6.88"*4.58"*8.83) |
Weight | 319g(11.28 oz) |
Battery Case Dimension | 89*59*25mm (3.5”*2.32”*0.98) |
Frequencies Band | 2.4GHz ISM band（2400MHz~2483.5MHz） |
Channel Quantity | 5 |
Applicable Model Types | Car(incl. Crawlers/Tanks/Caterpillars)/Boat/Robot） |
Modulation Mode | GFSK |
Spread Spectrum Mode | FHSS&67CH pseudo random frequency hopping |
Storage Model Quantity | 30 |
Antenna Length | 106mm (4.17”) |
Control Range | 400 meters(1312.33 ft)(Maximum range tested in unobstructed areas free of interference) |

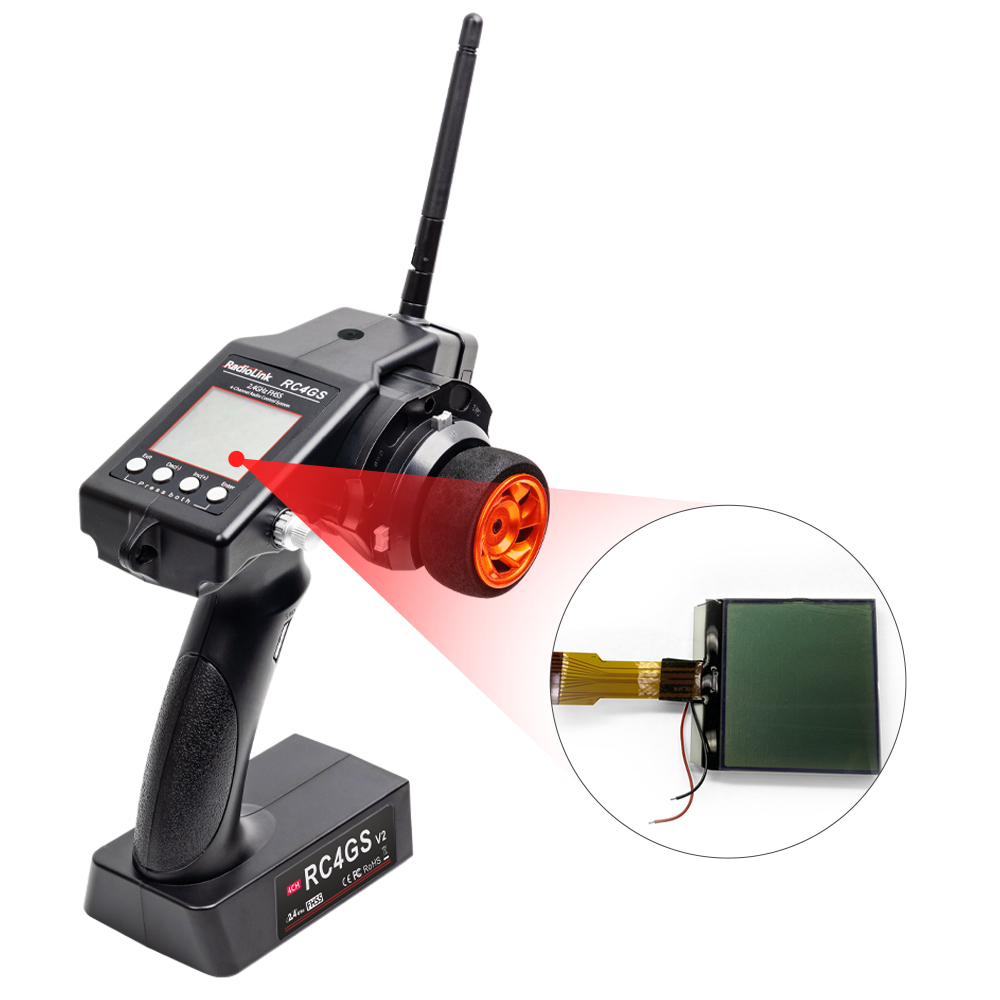

LCD Screen | 128*64 resolution, LCD backlight |
Operating Voltage | 4.8-15V, 6pcs of AA batteries or a 2S-4S LiPo battery |
Operating Current | 80~120mA（Depending on power supply） |
Transmission Power | <20dbm |
Channel resolution | 4096 with regular jitter of 0.5us |
Low Voltage Alarm | Yes, when less than 4.6V or customize on 2S-4S battery |
Compatible Receiver | R6FG(Std), R7FG, R6F, R8EF, R8F, R4FGM, R4F |
【Excellent Anti-interference】: With pseudo random FHSS algorithm, which makes RC4GS with excellent anti-interference ability, control range up to 1300 feet (400 meters).
【Built in Gyro】: Built-in gyro can keep the vehicle in a straight line, and Gyro sensitivity can be adjusted by the transmitter's VR switch, which fits for drifting car and on-road cars.
【Powerful Function】: EPA, ABS, fail-safe, D/R, IDLUP, low power alarming, subsidiary ID(control multiple receivers separately),etc. CH3-CH4 can be customized to VR and tact switch.
【Dual Programmable Mix Control】: Mix control can be programmed with any two channels and each channel can be customized. That's friendly for twin-engine vehicles, such as tanks, boats, 4 wheel steering car.
【Adapts to Most of Types Vehicles】: with 10 models memory, each model can be set up and named separately. It is suitable for RC rock crawler, monster truck, buggy, gas powered, nitro, on/off-road RC car, etc.
R6FG 6 Channels Receiver Specification
Frequency | 2.4GHz ISM band(2400MHz~2483.5MHz) |
Size | 35*20*13mm (1.38"*0.79"*0.51") |
Weight | 6g(0.21oz) |
Channel Qty | 6 channels |
Model | cars/boats |
Spread Spectrum | FHSS & 67 signal channel pseudorandom frequency sequence hopping |
Antenna Length | 205mm (8.07") |
Power Supply | 3~12V DC |
Channel Resolution | 4096 |
Operating Current | 30mA |
Control Range | 400 meters(1312ft) |
Compatible transmitter | T8S/T8FB/RC6GS V2/RC4GS V2/RC6GS/RC4GS |
Excellent Anti-interference: With pseudo random algorithm FHSS communication technology, which makes R6FG with stable signal and outstanding ground control range over 1300 feet (400 meters).
Integrated Gyro: built-in gyro can keep the vehicle in a straight line, and Gyro sensitivity can be adjusted by transmitter, which fits for drifting and on-road cars.
Superb Fast Response: high resolution ratio of 4096, stable signal output to provide a fast response for all channels, suitable for rc rock crawler, truck, buggy, drifting, etc.
Press to Bind: No need bind plug and any radio setting, only press bind button for 1 second after power up radio and receiver.
Anti-polarity Protection: With reverse polarity protection, not damage the receiver even you insert wrong polarity. 3-12v DC support high voltage servo.
RC4GS V3 VS RC4GS V2
Contents | RC4GS V3 | RC4GS V2 | |
Transmitter Chip | ARM M4 | ARM M3 | |
Channels | 5 channels | 4 channels | |
Model Storage Quantity | support 30 models storage | support 10 models storage | |
FPV Head Track Function | No | No | |
Timer Function | Yes | No | |
Cruise Control System | Yes | No | |
D/R Switch | A switch can be set to switch D/R | cannot set a switch | |
Dual Mix Programmable | A switch can be set to turn on or turn off PMIX01 and PMIX02 | cannot set a switch | |
Low Voltage and RSSI Alarm | low voltage and RSSI alarm can be set independently for each model | 10 models can not set independently | |
DSC Port | can be set as Simulator Function, FPV Head Track Function, or TBS Crossfire Function | ||
Control Distance | 600m(1968.5ft) (Maximum range tested in unobstructed areas free of interference) | ||
TBS Crossfire Function | compatible with TBS Crossfire by connect the TBS Crossfire to the DSC port | ||
Telemetry | Support signal, RSSI, transmitter voltage and maximum 8S (33.6V) model battery voltage telemetry | ||
Gyro Integrated | Support, HV Servo Supported | ||
Subsidiary ID | Support maximum 10 binding receivers | ||
Antiplug Protection | Support | ||
USB Upgrade | Support | ||
Compatible Receivers | R8F, R8EF, R7FG, R6FG, R6F, R4FGM, R4F | ||
RC6GS V3 | RC4GS V3 | R7FG | R6FG | |
Channels | 7 Channels | 5 Channels | 7 Channels | 6 Channels |
Signal Output | SBUS/PWM/PPM | SBUS/PWM/PPM | SBUS/PWM/PPM | PWM |
Control Range(Feet) | 1900 | 1300 | 1900 | 1300 |
Dimensions(H*L*W) | 8.8*6.9*4.6 in | 8.8*6.9*4.6 in | 0.78*1.37*0.5in | 0.78*1.37*0.5in |
Weight | 11.28 oz | 11.2 oz | 0.21 oz | 0.21 oz |
Package included | RC6GS V3/R7FG/Lanyard | RC4GS V3/R6FG | R7FG/XT60 Cable | R6FG |
What Can You Get Out Of Each RC4GS V3 Set?
Trademark registration
Honor&Awards
AT9 (same appearance as AT9S/AT9S Pro) won the German RedDot Design Award.
Certifications
Good Reviews From Amazon
Subsidiary DUMBORC
ABOUT DUMBORC
DUMBORC, as the subsidiary of RadioLink, is responsible for the processing and assembly of all RadioLink products.
RadioLink products for the retail market, products more tend to premium products. More and more car manufacturers suggest us to design a transmitter without a screen, this transmitter designed for car/boat manufactures that with high-end performance while low price to make sure the customers enjoy the most cost-effective RTR car/boat. So, we let our subsidiary DUMBORC launched a new period transmitters X4, X5, X6 since July 2019.
Within the second half of 2019, this period transmitters have been quickly adopted (as RTR) by domestic RC car brands like River Hobby and HNR HOBBY and produced as ODM transmitter by more and more international brands such as TRAXXAS, TAMIYA, CARSON, ABSIMA, LRP, CML, etc.
