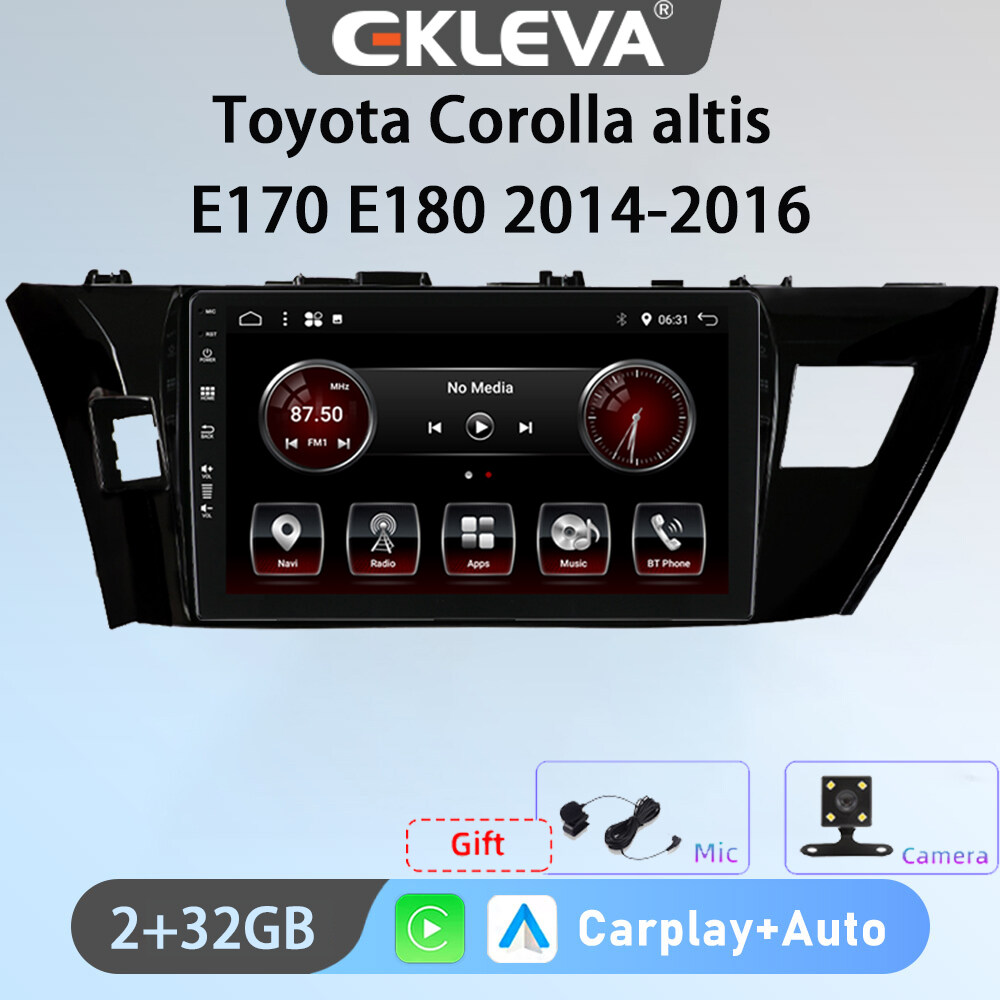

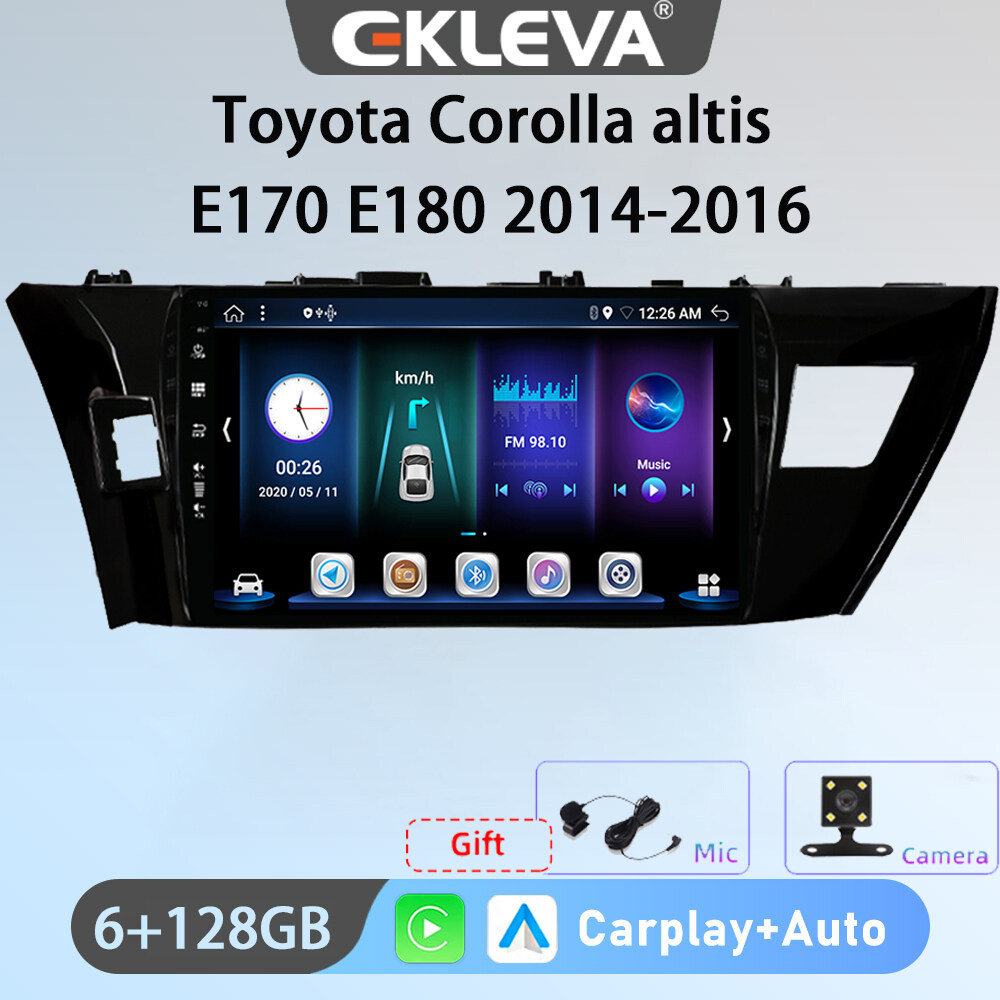

EKLEVA 2 din Android Auto Radio for Toyota Corolla altis E170 E180 2014-2016 Carplay Car Multimedia 2din Autoradio Head Unit 2din GPS 4G Free Gift Rear Camera and Microphone

Specifications OF Android 10:

• 1:Bluetooth for hands-free. Bluetooth Phone book Search From "A to Z"
• 2:HD Capacitive multi-touch screen: 1024*600
• 3:Reverse camera/Drive Record DVR From Rear USB: Support
• 4:OBD, Mirror Link: Support (need extra pay it)
• 5:Cold Start for about 20-35 seconds
• 6:Mirror Link, Steering wheel control: Support
• 7:Wifi: Built-in/Via phone as Wifi Hot Spot.
• 8:Support APPS: Many, for example, Google Play Store, Skype, Facebook, YouTube, Twitter, etc
• 9:Support RDS.FM Frequency: 87.5-108MH AM frequency: 522-1710KHZ
• 10:Car Internet: built-in wifi, support 3G/4G/ Modern (need extra pay it)
• 11:Support GPS Online Map, Such as Google Yandex.SYGIC,IGO,TOMTOM/ Waze.Yandex Map needs to contact us send to install
• 12:Multi OSD Languages: English/Russian/French/German/Spanish/Italian/Arabic/Portuguese/Turkish/Thai/Polish/Hebrew etc 60 kinds language
• 13:Working Tempertarure: -20°C-----+70°C Storage Temperature: -30°C-----+80°C
• 14:Boot Logo: Select The Built-in 50 Kinds Of Auto LOGO. Choose the car start logo as you like.
• 15:RCA cables for the subwoofer, power cable plug, and play, easy to install
• 16:Pure New Android OS, Google Play Store, Skype, Facebook, YouTube, Twitter, etc

Features

• DSP+Carplay+Touch Screen+Radio+FM/AM+RDS+GPS Navigation+MAP+Wifi+Bluetooth+Steering Wheel Control +Split Screen + USB+SD+AUX in/Out+Mirror Link+Rear View Camera+Subwoofer+Play Sore+EQ+Wallpaper Set+Car Logo+3G/4G+TPMS+DAB+OBD 2+DVR+TV

System Parameters

• Android 10.0+Capacitive Screen+1024*600+AC8257 Octa Core A53 2.5GHZ CPU + DDR4 4GB RAM + 64 GB ROM Memory,EMMC,GPU:IMG GE8300
• Power Output: 4*45W
• Bluetooth 5.0,Radio IC TDA 7708. AMP 7851
• Working temperature -20 ℃ —— +70 ℃
• Video:Support 1080P,AUX IN, RCA Output

Specifications OF Android 11:

• CPU: B100 Quad-Core Cortex-A7
• RAM: DDR3 2G
• ROM: 32G
• Operating System: Android 11
• Panel type: fixed Panel
• Color for button light: 128 kinds of the button color
• Power supply: DC 10.8~16.0V
• Max current: 15A
• Max. Power Output: 4X50W (TDA7388)
• Standby current: < 5 mA
• Language: English, etc.
• EQ Type: 64 Band, with loudness
• DSP: Yes (BD37033FV-ME2)

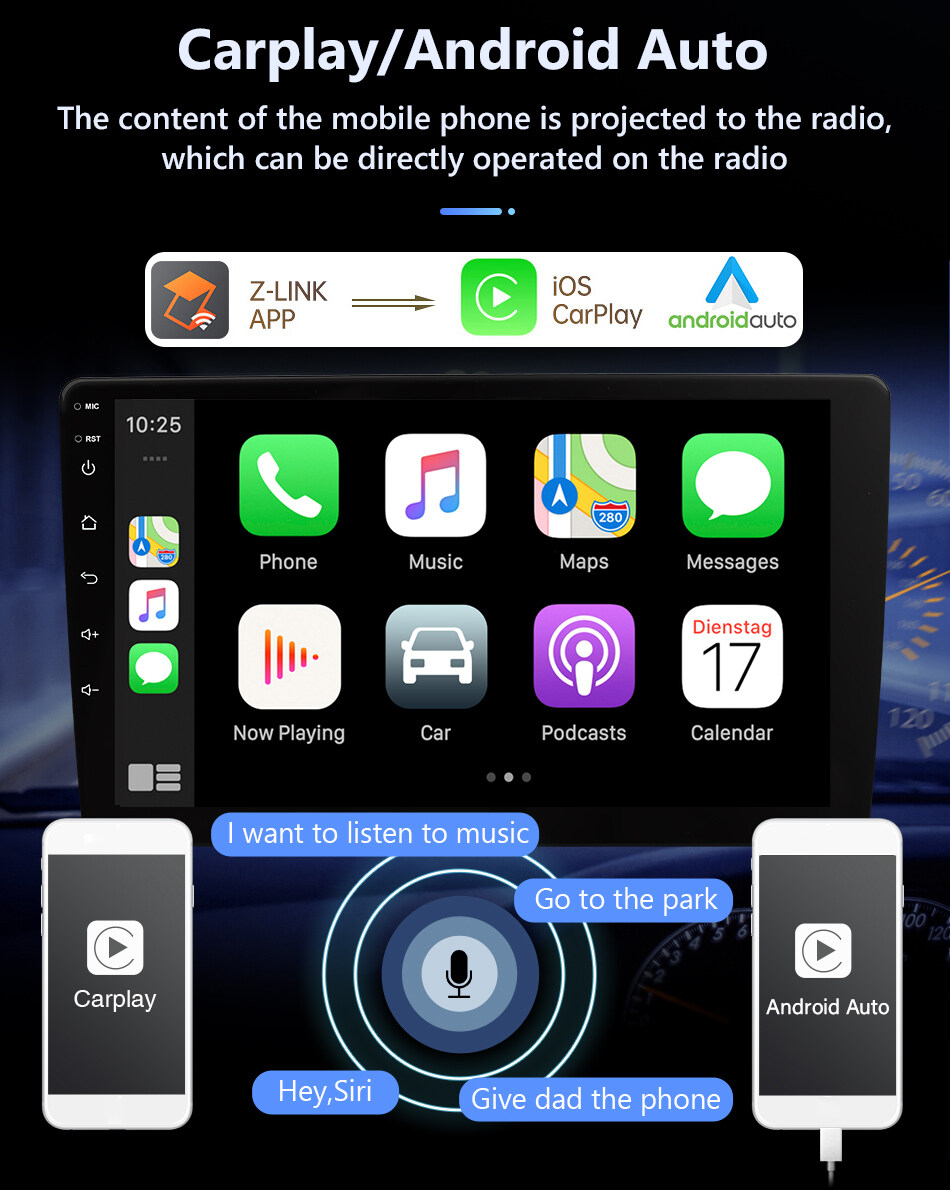

Phone connection

• Apple CarPlay: Yes (Wire&Wireless car play)
• Android Auto: Yes (Wire&Wireless ）
• Phone Link: Yes, for Android and iOS phones optional

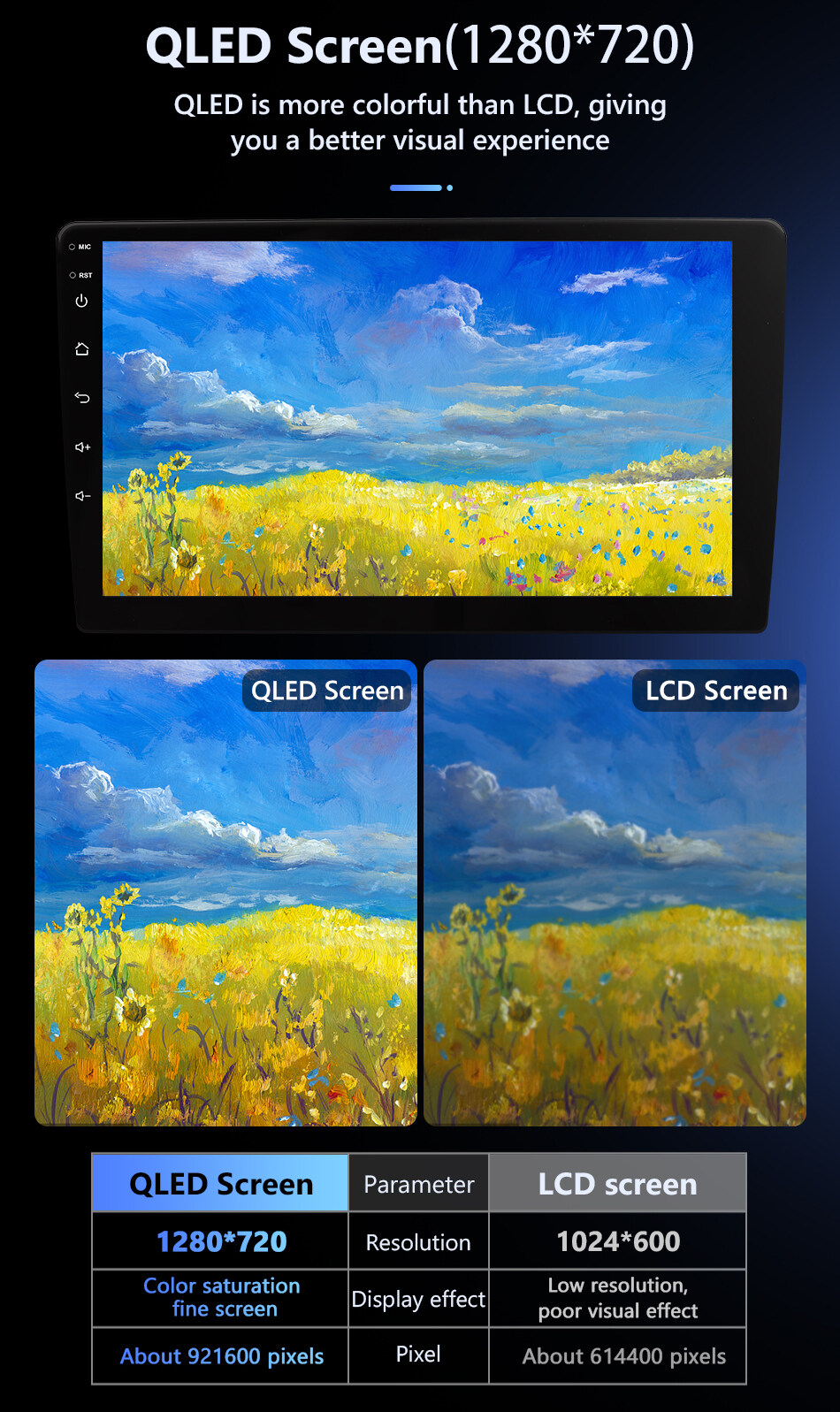

Display

• TFT type: digital TFT

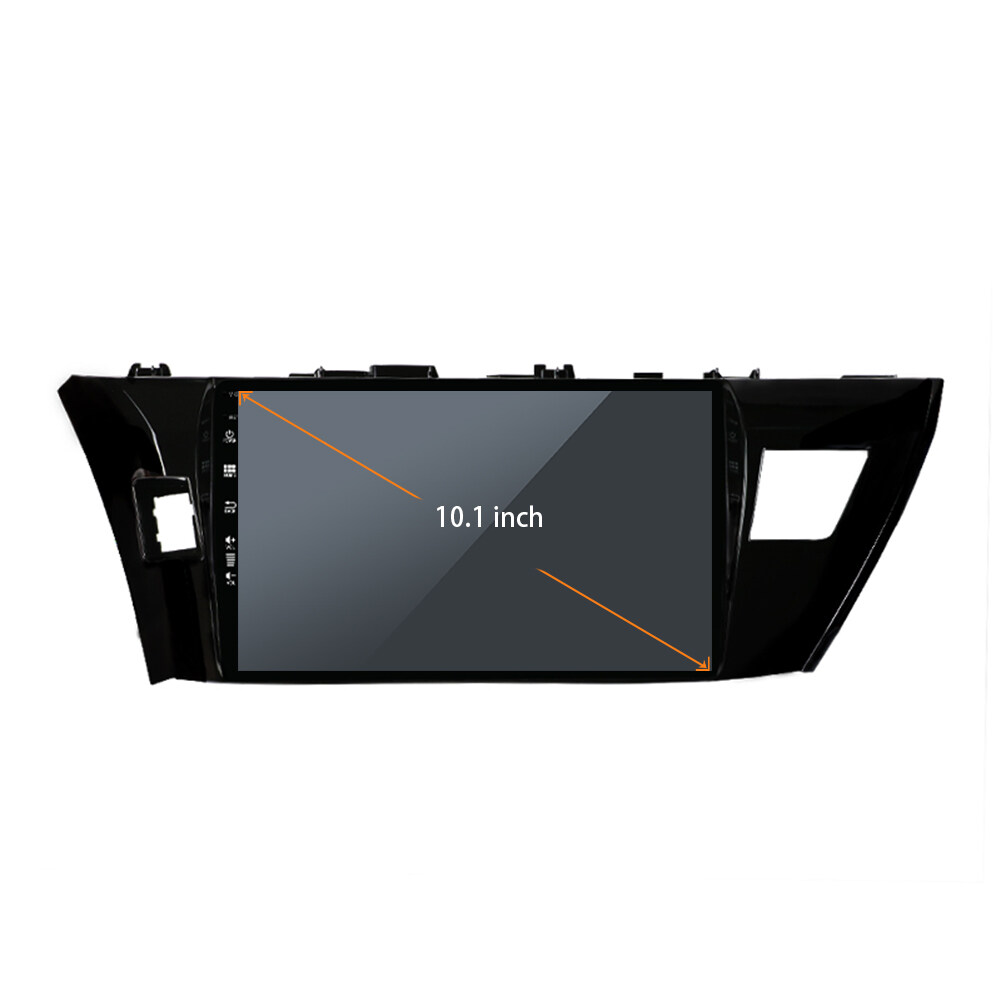

• TFT size: 7"，9" or 10.1"
• Screen Resolution: 1024*600 (1280*720 optional)
• Touch Screen Panel: 2.5D Capacitive touch panel
• Display video type: 16:9
• Brightness Control: Yes

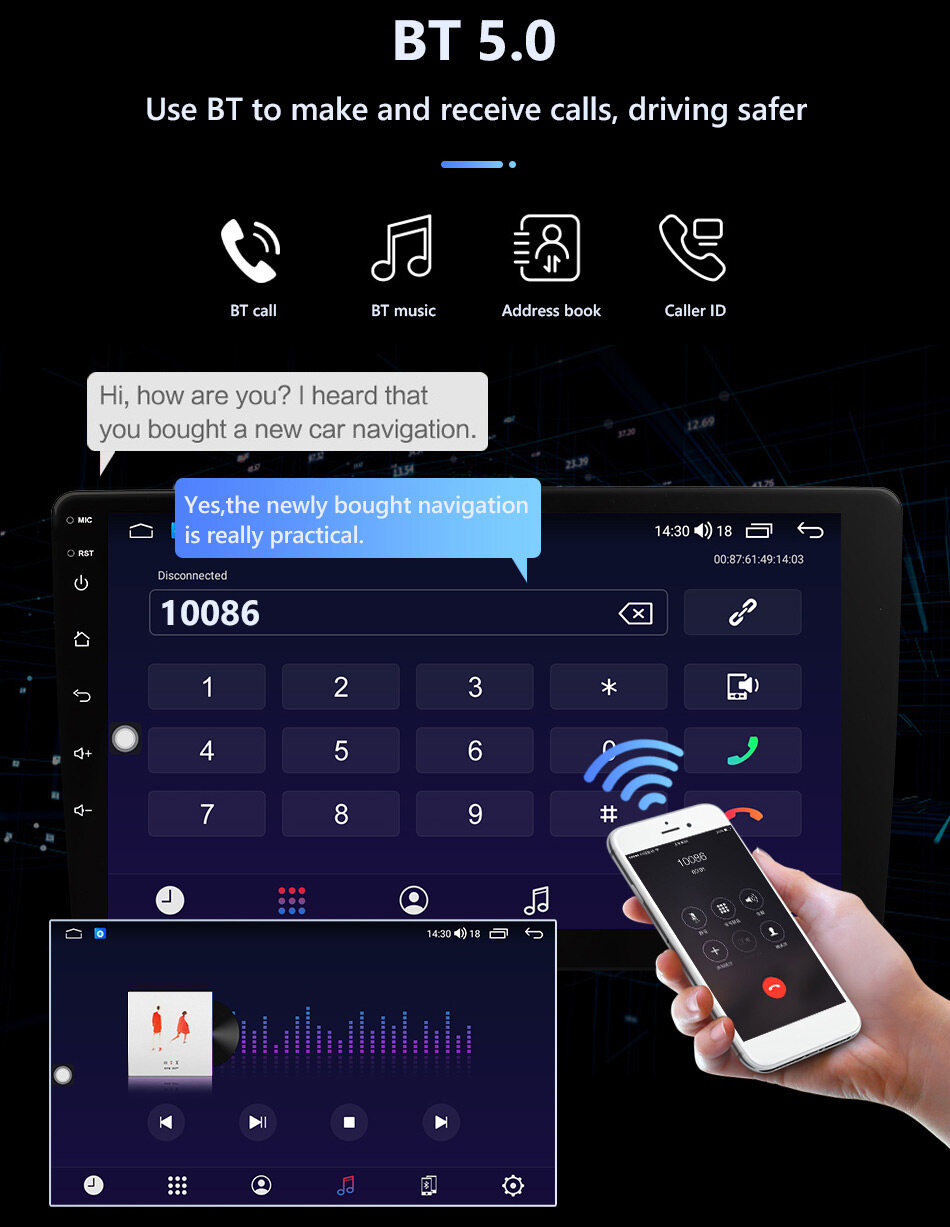

Bluetooth

• Bluetooth module: Integrated into MT6625L
• Supported Bluetooth Version: V5.0
• Max No. of pairable devices: 1
• HFP Twin conection: NO
• Supported profile: AVRCP, HSP, HFP, PBAP, SPP
• Hands-Free Call: Yes
• Audio Streaming: Yes, play/pause/previous/next
• Phonebook download: Yes
• Phonebook searchable: Yes
• Call history: Yes
• Microphone Position: Built-in(Default)/external

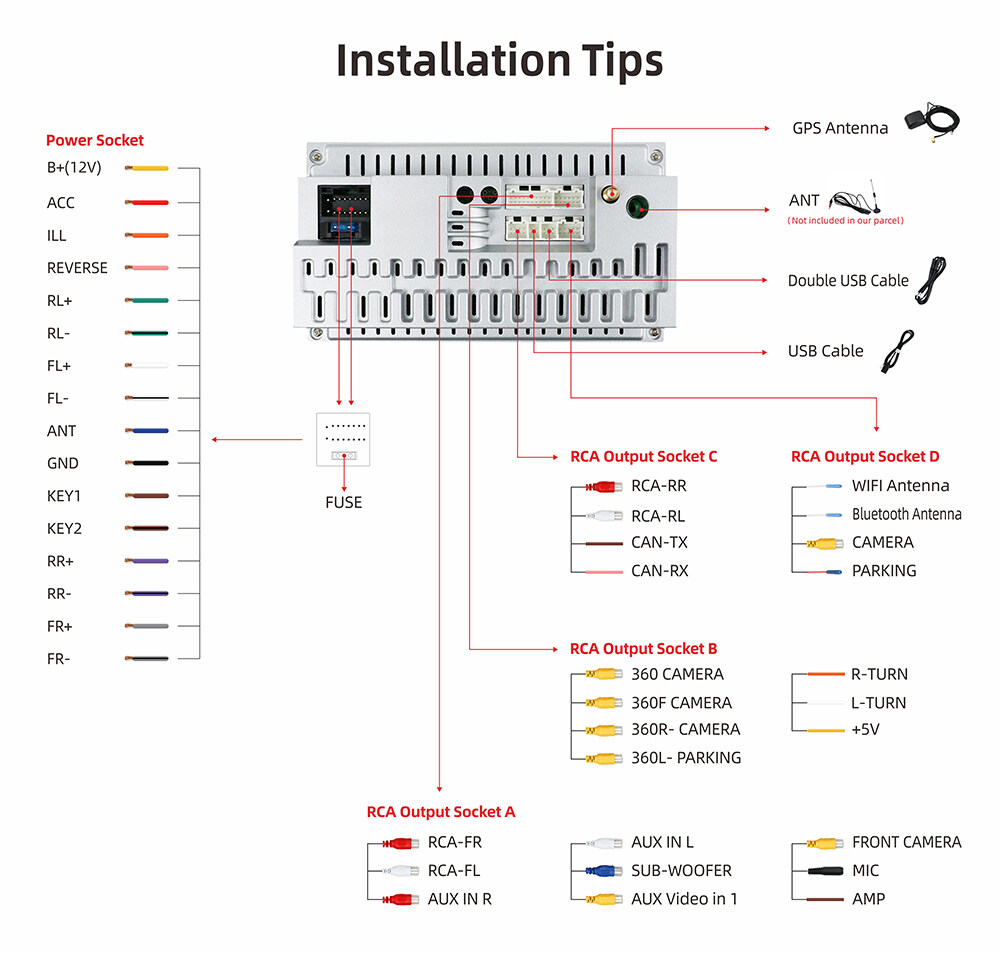

Interface

• Video in: 2channel(front and rear)
• Aux-in input: 1 (front or rear)
• Video output: Yes, 2 channel
• Pre-amp line out: 4.1 X 2V
• USB port : 2 in the rear
• SDHC port: 1 in the front
• DVR ready : Yes(DVR Device not included)
• Built-in DAB ready : No
• SXM ready: No
• HDMI input: No

USB

• USB Version: USB 1.1 and 2.0
• Maximum Size USB: 128GB
• HDD supported : Yes
• supported audio format: MP3/WMA/FLAC/APE/AAC
• Supported video format: MPEG/H.264/MP4/AVI/MKV/FLV/WMV
• Supported image type: JPG/JPEG/PNG/BMP/GIF
• Album art (cover) display: Yes

SDHC

• Maximum Size: 128GB
• supported audio format: MP3/WMA/FLAC/APE/AAC
• Supported video format: MPEG/H.264/MP4/AVI/MKV/FLV/WMV
• Supported image type: JPG/JPEG/PNG/BMP/GIF
• Map carrier: Yes

Radio

• Radio Tuner module : 4745 (optional TDA7708/NXP6686/)
• Supported band: AM, FM
• Station Preset Qty: 18 for FM,12 for AM
• Supported RDS: Yes
• High cut supported: Yes
• Supported radio regions: All regions
• Auto / Manual Frequency Search: Yes
• Auto Store / Preset Scan: Yes
• FM Stereo: Yes

Navigation

• GPS module: MT6625L
• GPS Supported Maps: IGO, others( Waze Per-installed)
• Supported map card size: 32G
• High-Speed Auto Re-Route: Depend on Navi software
• Zone Alerts: Depend on Navi software
• Text To Speech (TTS): Depend on Navi software

Other features

• SWC: Yes, study type
• Rear camera view: Yes(support 720P1080P AHD, TVI, CVI camera)
• Background Wallpaper changeable: Yes
• Startup logo changeable: Yes
• P.ANT: Yes
• Video playing prohibition during driving: Yes
• Smartphone charging: Yes, 1A
• Built-in Wifi(with Hotspot): Yes， 5G WIFI
• Preset CAN SW: Yes (External CANBUS)
• APP download and install: Yes
• Support fast boot after ACC OFF/ON: Yes
• Supply connector: ISO
• Navigation and Bluetooth voice separately: Yes
• Built-in Amazon Alexa: NO
• Built-in voice control: Optional
